What is Ring Die Pellet Plant?

Ring Die Pellet Plant

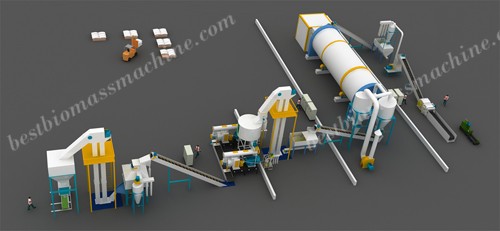

Ring Die Pellet Plant Design Drawing

Ring die pellet plant is the complete equipment for large pellet production. It is the ideal choice for the one who want to produce biomass pellets in a large scale for ring die pellet plant is the production line that can generate raw materials continuously.

The productive process is generally wood splitting, crushing, drying, pelletizing, cooling & sieving, packing. And each step is matched with the corresponding device. For example, wood splitter, crusher/hammer mill, dryer, pellet machine, cooler, packager, etc.

The yield of ring die pellet plant can reach 20t/h if you combine several ring die pellet machines. ABC Machinery will supply you with the turn-key solutions, so you don't need to be worried about how to set up the whole large pellet plant and we will help you to set up the complete production line with the lowest investment.

The equipment adopts special materials, which greatly reduces maintenance frequency, bringing you the largest profits.


Large Pellet Production Line with 15sets Ring Die Pellet Mchines in Vietnam

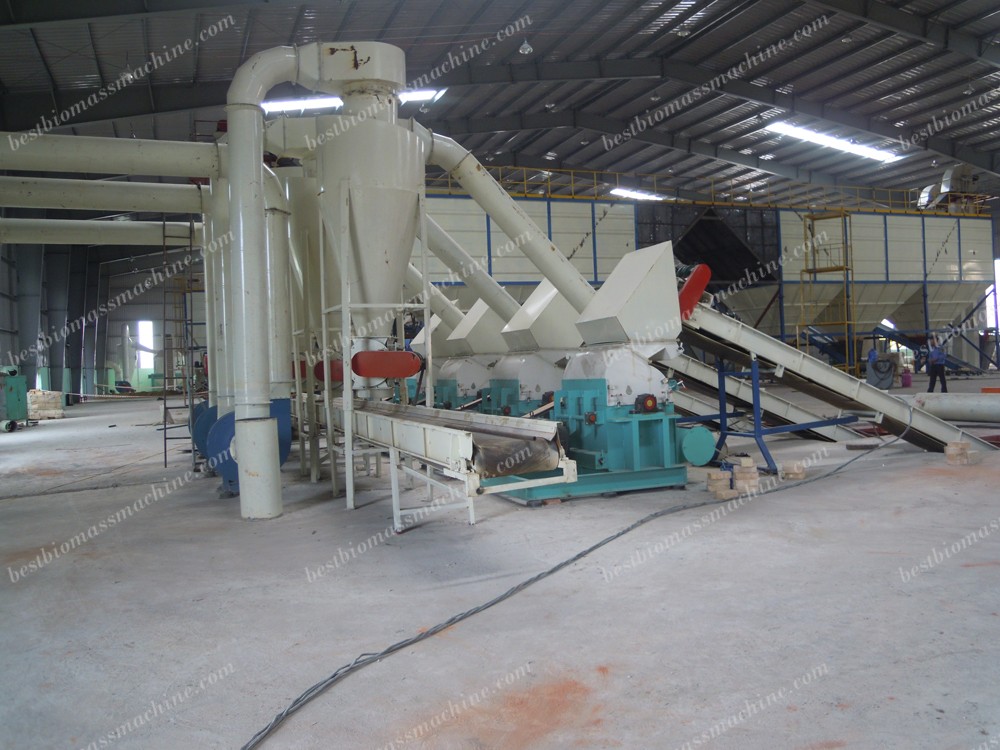

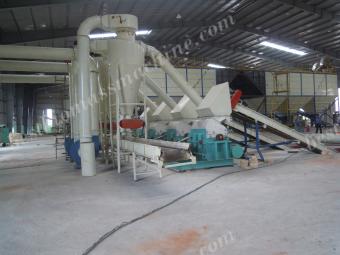

crushing system
Crushing System

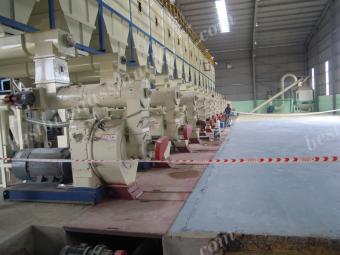

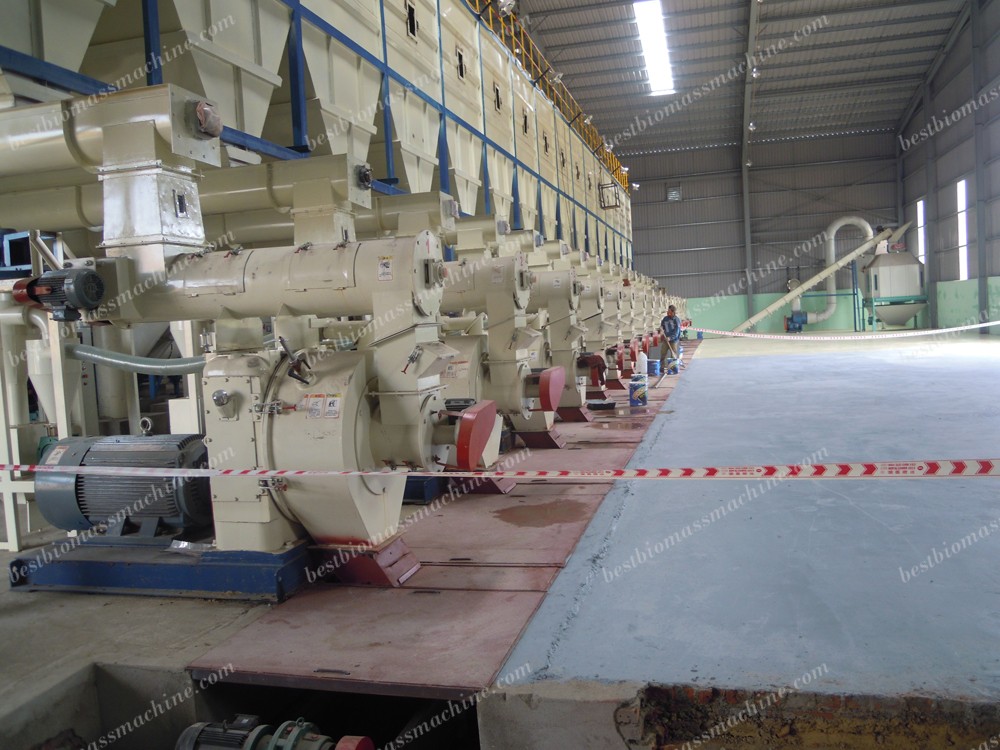

pelletizing and cooling system
Pelletizing and Cooling System

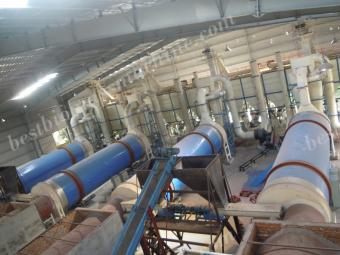

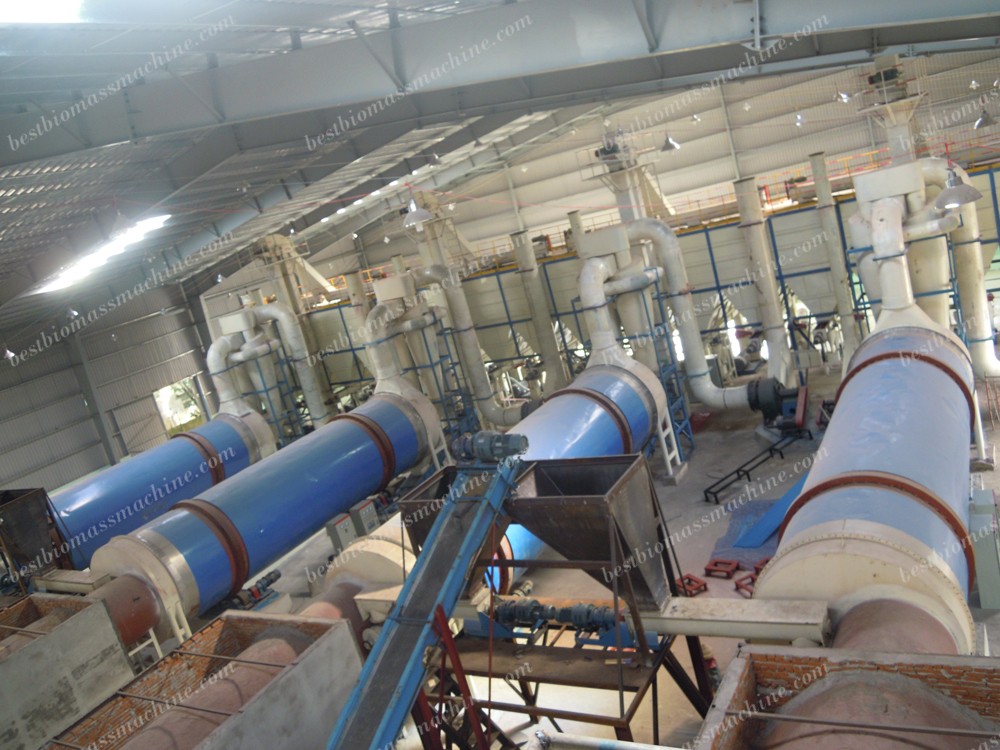

drying and pelleting system
Drying and Pelleting System

Advantages of ABC Machinery – Large Pellet Plant

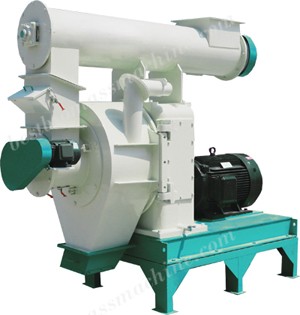

Key Equipment of Ring Die Pellet Plant - Ring Die Pellet Machine

ring die pellet machine Model Capacity (kg/h)
Sawdust/Stalks
Main Motor (kw) Feeding Motor (kw) Forced-feeding
Motor (kw)
Dimension (mm) Weight (kg)
BPM35 500-800 30*2 0.75 0.75 2150*1950*1900 2200
BPM420 1200-1500/1500-2000 90 1.5 3 2600*1000*2000 3400
BPM508 1500-1800/2000-2500 110 1.5 3 2990*1200*2410 4500

Why Do You Choose ABC Machinery Ring Die Pellet Plant?

ABC Machinery is a qualified company with many years of experience, who owns 8 patents and CE and ISO9000 certification. Most importantly, ABC Machinery has its own ring die factory. We all know that, ring die is very vital to the ring die pellet machine , and ring die pellet mill is significant to the ring die pellet plant. We can guarantee the quality of ring die, that means, we can make sure the whole production plant to produce pellets with the least number of faults. Our products are sold to more than 50 countries like Europe, Asia, America, Africa, etc and our products get great feedback. You can order our ring die pellet plant at ease.
