Feature of Wood Pellet Machine ZLSP-D series| ABC Machinery

Wide range of disposal raw materials

  • It has a wide range of processing, wood pellet machine can make pellets from biomass waste that we can find, like weed tree, pine, bamboo wastes, peanut shells, rice husk, wheat straw, etc.
  • The largest length of raw material: Make sure the maximum length of raw material is no more than die hole diameter. For example, with 6mm wood pellet machine flat die, the length of wood chips should not exceed 6mm.
  • Raw material moisture: Ensure that biomass raw material moisture control between 10% and 18%, different raw material requirements of the moisture is different also, For example, the raw materials that contain lignin or sugar higher in pine wood require a low level of moisture, whereas, they require a high water level.


Making High quality pellets

  • The density of process pellet is 1.1*10³kg/m³.
  • Die orifice compression ratio: Flat die wood pellet machine ZLSP-D orifice compression ratio, different raw materials, due to different packing density, have different quality of lignin. Therefore, it is necessary to have the different form of die hole to achieve the best shaping effect. Our ZLSP-D series wood pellet machine is equipped with a flat model that is processed by a large amount of experimental data from different raw materials, which is best for the general raw materials. However, if the pellets produced by the customer have more dust and less formation rate, we will adjust the flat die compression ratio according to the material.


Parameter of ZLSP-D wood pellet machine

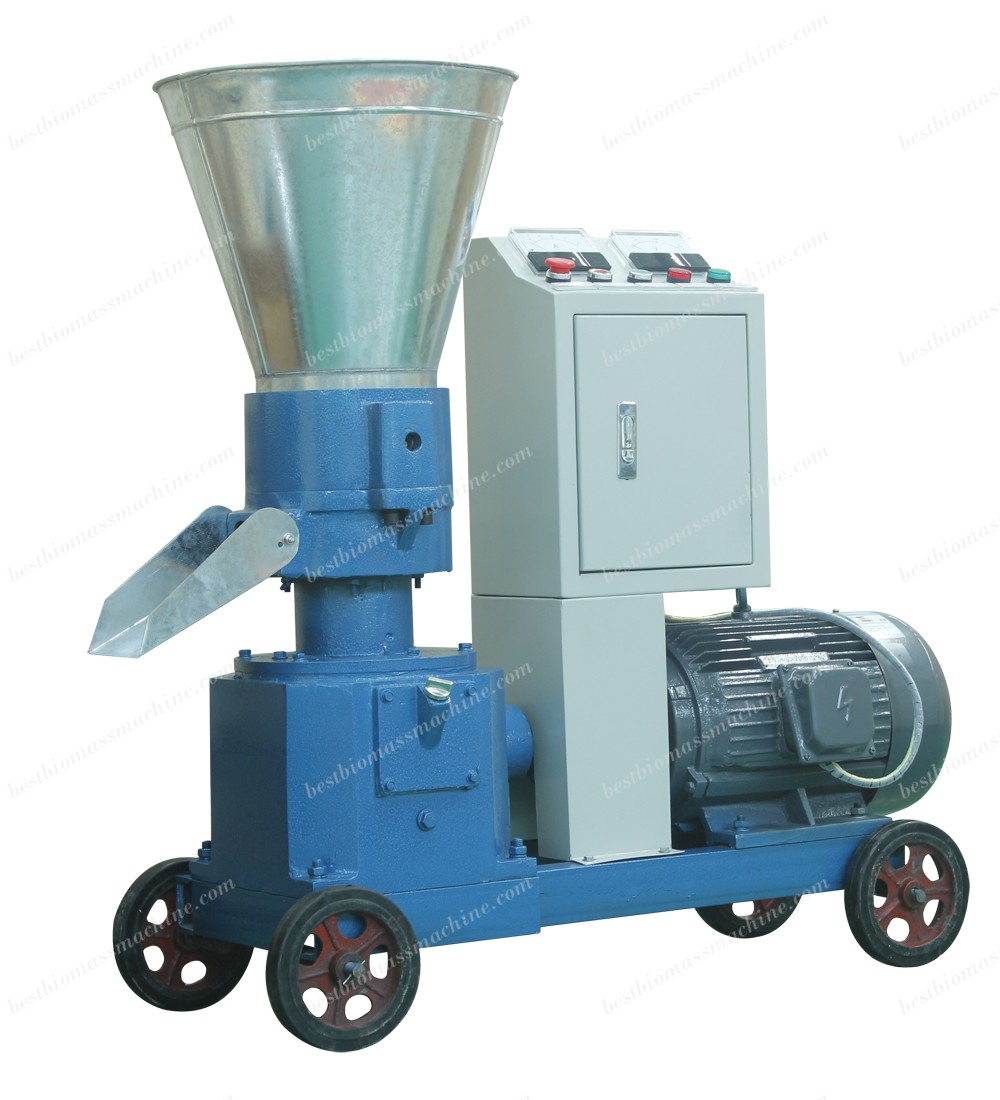

Electric Motor-driven Flat Die Pellet Mill Model Power(kw) Output(kg/h) Weight(kg) Packing Size(mm)
ZLSP-D 150B 3phase 5.5 50-100 95/110 800*450*700
ZLSP-D 200B 3phase 7.5 80-120 200/230 1050*480*930
ZLSP-D 230B 3phase 11 120-200 290/320 1180*540*1000
ZLSP-D 260B 3phase 15 160-250 320/360 1240*540*950
ZLSP-D 300B 3phase 22 250-400 350/380 1300*560*1100



Structure of wood pellet machine

  • Using bevel gear transmission structure: Low cost, Easy to maintenance.
  • The wood pellet machine die and the main shaft use 40Cr: High Cr content, more wear-resisting, good quality adjustment steel, good mechanical properties, widely used for important and overloaded occasions, such as crank, wanxiang, main shaft, etc. With special heat treatment technology, the hardness can reach 60HRc, greatly improves the wearability, and the core strength is high, the overall strength is good.

ABC Machinery wood pellet machine ZLSP-D series is more suitable for processing cork wood, or making feed pellets. The wood pellet machine ZLSP-D series relative to ZLSP-R series small yield, low prices, small investment costs, more suitable for home or small farm use.

The technical R&D center of ABC Machinery focus on the development direction of the biomass energy industry. Through constantly research, improvement, learning and experiment to make sure that our company products are always at the forefront of the biomass energy machinery industry.
