1-1.2T/H Sawdust Pellet Line in Italy

The 1-1.2t/h sawdust pellet line is located in Italy. This pellet production line uses pine, spruse, and the mixture of douglas fir and beech as the raw materials. The yield of this sawdust pellet plant is 1-1.2t/h.

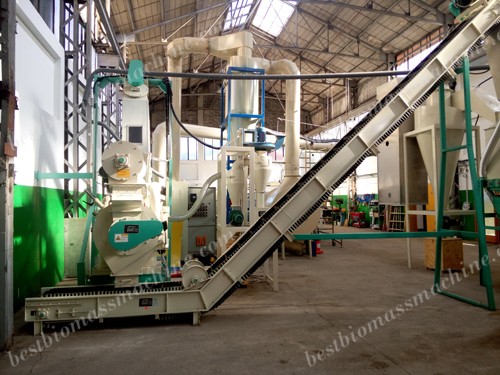

Sawdust Pellet Line
The main procedure of sawdust pellet production line:  drying, pelletizing, cooling

Pellet Making Process:

  1. The wood logs firstly are cut into 1 meter of length, after being removed the peel by peeling machine, the wood logs are carried to the splitter by labor or the claw machine.
  2. The splitter splits the logs into the sizes that is suitable for the chipper, then the chipper begins to work.
  3. The chips are ground by the grinder, like hammer mill.
  4. The ground materials are conveyed to the dryer by the draught fan.
  5. The dried materials are waiting to be pelletized in the pelletizing chamber.
  6. The pellet mill begins to make pellets.
  7. The pellets are sent to the cooling machine by belt conveyor to be cooled.
  8. The cooled pellet products are lifted to the pellet stock bin by elevator.
  9. There are two outlets under the pellet stock bin, one is automatic packing machine. The pellets packaged by the automatic packing machine will be sealed by the heat sealing machine. The other is discharging outlet of tons of package.

Highlights of Sawdust Pellet Line:

  • The drying drum and feeding are both controlled by digital frequency conversion.
  • The feeding of pellet mill is also controlled by digital frequency conversion.
  • The drying stove adopts recycle feeding, which greatly reduces the manual operation.
log pine spruce
Material:Pine, Spruce, Beech
log splitter
Log Splitter
sawdust waiting for pelletizing
Sawdust Waiting for Pelletizing
BPM420 sawdust pellet machine
BPM420 Sawdust Pellet Machine
pellet packing machine
Pellet Packing Machine

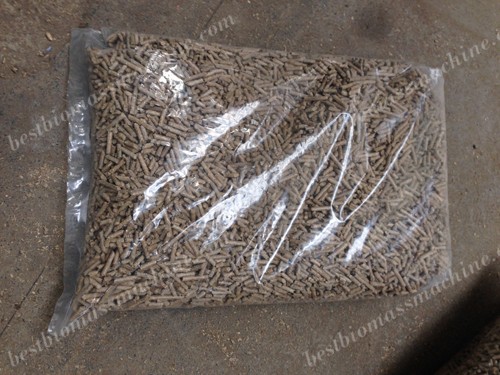

packing pellets
Packing Pellets
