Peanut Shell Pellet Mill Makes Wastes into Treasure

Peanut shell is the common thing in China rural areas. Most of people take them as rubbish to handle or burn them even throw directly. It is a waste not to make full use of the peanut shells.
   Peanuts   Peanut Shells
So it is necessary to solve the problem, but what should we to do? That is to use peanut shell pellet mill to turn waste into treasure. These peanut shells are processed into pellet fuels. And that is a wonderful process. Now let’s see how the peanut shells becomes peanut shell pellet fuels.


Peanut shells processing procedures

  1. Usually, the peanut shell should be ground into tiny pieces so as to go into the pellet mill die holes.
  2. Then you should pay attention to the moisture content in the peanut shells. Generally speaking, you should dry the peanut shells by a drying machine to the proper moisture content which meets the processing requirement of peanut shell pellet mill.
  3. The next is the most important step --- pelletizing. In this step, you need use the peanut shell pellet mill. Whether the pellets are formed or not, the peanut shell pellet mill plays an important role. There are several factors to affect the pellets forming including compression ratio, the clearance between the roller and die, temperature, pressure, etc. So a good peanut shell pellet is so important.
  4. After the pellets coming out of the peanut shell pellet mill, you can decide whether you should use the cooling machine and packing machine or not according to your production scale and the pellets usages.


Parameters of Peanut Shell Pellet Mill

Our company supply two kind of peanut shell pellet mills, flat die pellet mill and ring die pellet mill. Both of them have their different types. The following gives the parameters of two types of flat die pellet mill:

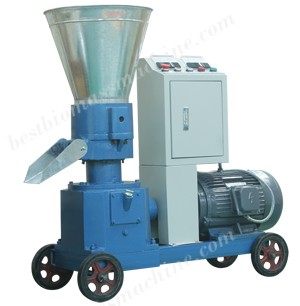

Electric type:
Electric driven flat die pellet mill Model number Power (kw) Output (kg/h) N.W/G.W(kg) Package size(mm)
ZLSP150B 3phase,5.5 50-100 95/100 800*450*700
ZLSP200B 3phase,7.5 80-120 200/230 1050*480*930
ZLSP230B 3phase,11 120-200 290/320 1180*540*1000
ZLSP260B 3phase,15 160-250 320/360 1240*540*950
ZLSP300B 3phase,22 250-400 350/380 1300*560*1100

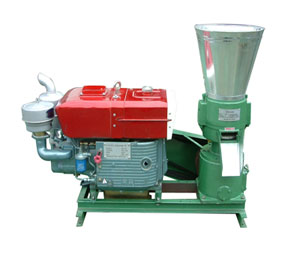

Diesel type:
Diesel engine driven flat die pellet mill Model number Power (kw) Output (kg/h) N.W/G.W(kg) Package size(mm)
ZLSP150A 10 50-100 180/220 1000*500*750
ZLSP200A 15 80-120 210/240 1460*750*900
ZLSP230A 22 120-200 280/310 1560*850*1000
ZLSP260A 33 160-250 330/360 1200*500*1070
ZLSP300A 41 250-400 410/450 1220*600*1100
There are many other types of peanut shell pellet mills, if you want to know more, you can contact us.

From the chart, we can know that, different powers have different capacities. Usually speaking, the large capacity pellet mill is suitable for large production line, while the small peanut shell pellet mill is often used for household.

Our company not only supply the peanut pellet mill, auxiliary devices are also in within the scope of business like splitter, crusher/hammer mill, elevator, belt conveyor, drying machine, cooling machine, packing machine, etc. Those devices are to assist the pellet mill to produce pellets more easily and quickly. If you want to have the peanut shell pellet mill even the auxiliary devices, contact us, we will give the best service.
